Home > Gas-liquid booster cylinder

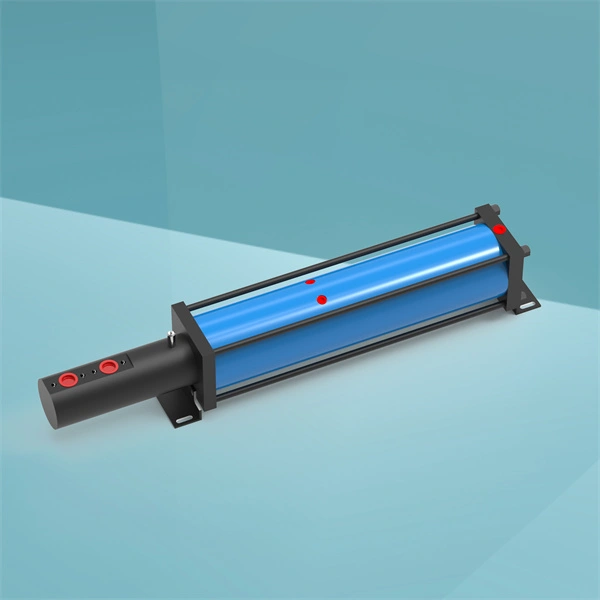

Gas-liquid booster cylinder
MPS-HMPS series driven supercharger
Pressure: 2-2000 kN

Power stroke: 6-52mm

Total stroke: 100/200mm

The MPS/HMPS gas-liquid booster is a high-pressure output device that integrates pneumatic and hydraulic technology. It uses compressed air to drive the piston movement and applies Pascal's law to convert the input air pressure into hydraulic pressure that is dozens of times the input air pressure. Its core components include cylinders, oil cylinders and air-oil conversion barrels, which can achieve 360-degree installation without the need for additional hydraulic units.
Submit Inquiry Learn About Our Manufacturing Capabilities
WhatsApp Consultation

Connect directly with our engineers

MPS Series Parameter Table

Model

Output high oil pressure bar at 6bar input air pressure

Output low oil volume CC at 6bar input air pressure (rapid advance)

Output high oil volume CC under boosting state

A1

H

B

L1

L

Pneumatic Interface

Hydraulic Interface

Remarks

MPS100.60.30

400

470

30

112

85

625

281

681

G1/2

G3/4


MPS125.60.50

400

790

50

137

98.5

612

256

668

G1/2

G3/4


MPS160.60.100

400

1800

100

177

118.5

720

298

776

G3/4

G3/4


MPS200.60.180

400

2800

180

216

138

836

386

892

G1

G3/4


MPS250.60.265

400

6600

265

268

159

921

361

977

G1

G1


MPS300.60.390

400

10000

390

332

196

1125

450

1200

G1

G1-1/4


MPS: Boost ratio 69, output oil pressure 400bar at 6bar input air pressure; Suitable for driving AT series working cylinders.



HMPS Series Parameter Table

Model

Output high oil pressure bar at 10bar input air pressure

Output low oil volume CC at 6bar input air pressure (rapid advance)

Output high oil volume CC under boosting state

A1

H

B

L1

L

Pneumatic Interface

Hydraulic Interface

Remarks: Output high oil pressure bar at 6bar input air pressure

HMPS100.100.50

400

470

110

112

85

625

281

681

G1/2

G3/4

230

HMPS125.100.78

400

790

135

137

98.5

612

256

668

G1/2

G3/4

230

HMPS160.100.134

400

1800

175

177

118.5

720

298

776

G3/4

G3/4

230

HMPS200.100.284

400

2800

284

216

138

836

386

892

G1

G3/4

230

HMPS250.100.395

400

6600

272

268

159

921

361

977

G1

G1

230

HMPS300.100.650

400

10000

340

332

196

1125

450

1200

G1

G1-1/4

230

HMPS: Boost ratio 39, output oil pressure 230bar at 6bar input air pressure; Suitable for driving HZ series working cylinders.
