Gas-liquid booster cylinder

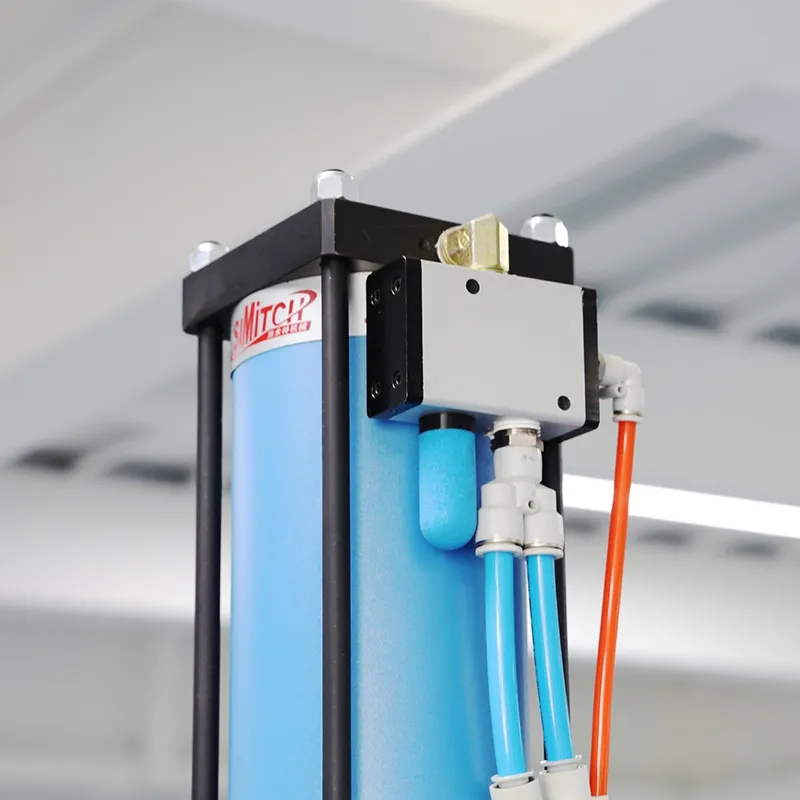

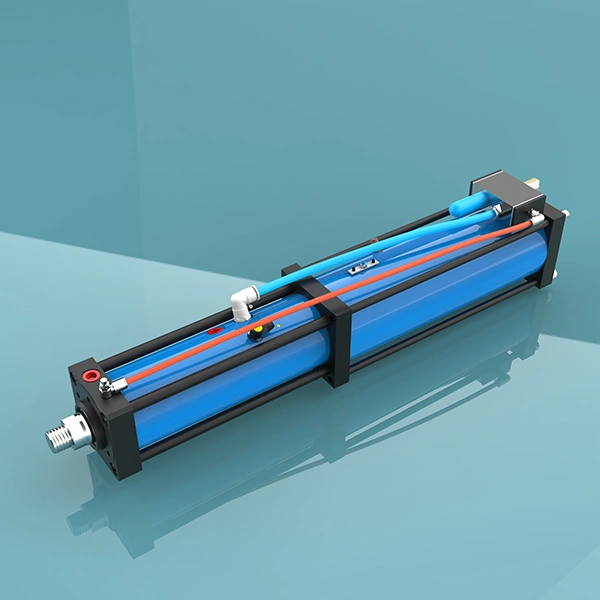

BS series pneumatic hydraulic cylinder
Pressure: 2-2000 kN

Power stroke: 6-52mm

Total stroke: 100/200mm

A drive unit that combines the high speed of a pneumatic drive with the high output of a hydraulic system. Its working principle is: pneumatically approaches the workpiece quickly, and then generates hydraulic pressure in the final stroke, thereby applying high pressure. This design ensures precise and powerful pressing while maintaining high operating speeds. With their high energy efficiency and flexible control, pneumatic cylinders are widely used in applications such as stamping, riveting, assembly, and pneumatic-hydraulic presses that require high speed and pressure.
Submit Inquiry Learn About Our Manufacturing Capabilities
WhatsApp Consultation

Connect directly with our engineers

Model6 bar output pressure (KN)6 bar output quick strokeforce (kg)6 bar output return stroke force (kg)Boost ratio6 bar output max. Oil pressure (bar)
BS01 -series119510562345
BS02-series175017064350
BS04-series3524026069380
BS08-series7235037061340
BS15-series13550070064350
BS20-series20058078064350
BS30-series276730100064350
BS50-series4761150170061340
BS75-series7362355378051280
BS100-series9702355378069380

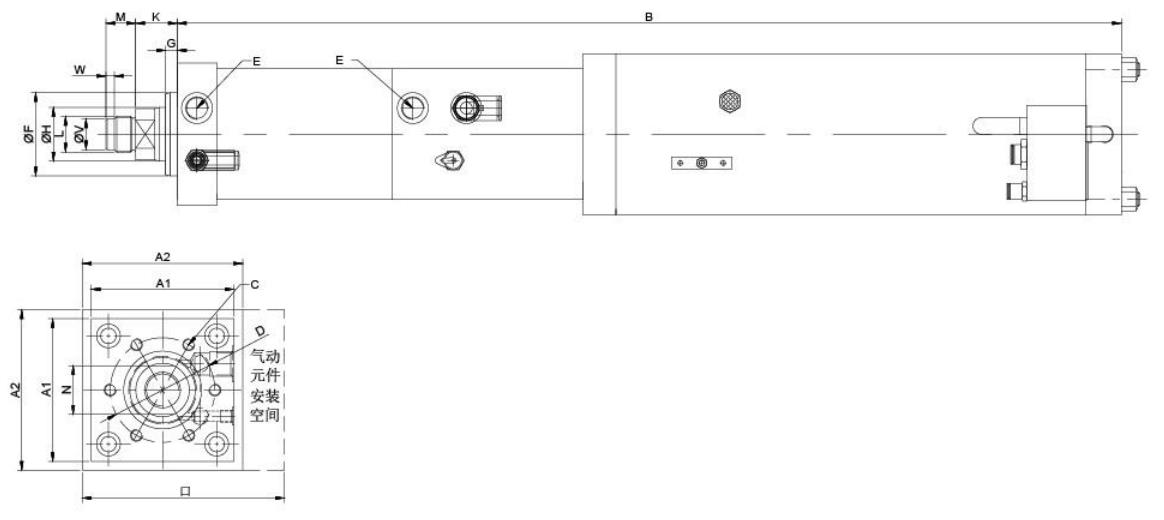

ModelA1A2BCDEF(f7)G工KLMNOU(g6)VRemark
BS01-100-12566805966-M6*1240G1/830101624M12*1.51513110

Spring
BS01-200-12566807866-M6*1240G1/830101624M12*1.51513110

Spring
BS01-100-24S66926686-M6*1240G1/830101624M12*1.51513135

Spring
BS01-200-24S66928686-M6*1240G1/830101624M12*1.51513135

Spring
BS02-100-12S78926836-M8*1554G1/440102026M16*1.51517135

Spring
BS02-200-12578928836-M8*1554G1/440102026M16*1.51517135

Spring
BS02-100-24S781127146-M8*1554G1/440102026M16*1.51517150

Spring
BS02-200-245781129146-M8*1554G1/440102026M16*1.51517150

Spring
BS04-100-12S981127306-M8*1864G3/850103029M22*22024150187Spring
BS04-200-12S981129376-M8*1864G3/850103029M22*22024150

Spring
BS04-100-24S981377626-M8*1864G3/850103029M22*22024180187Spring
BS04-200-24S981379626-M8*1864G3/850103029M22*22024180

Spring
BS08-100-12S1201377926-M10*2088G1/270104535M30*22536180267Spring
BS08-200-12512013710086-M10*2088G1/270104535M30*22536180267Spring

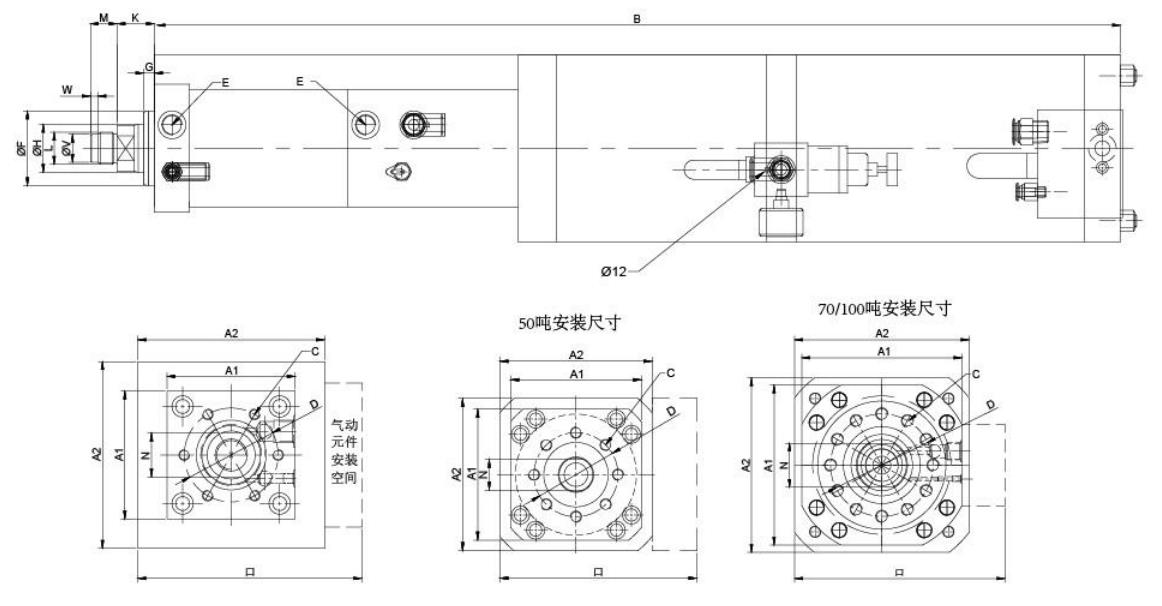

ModelA1A2BCDEF(f7)GHKLMN0U(g6)VRemark
BS08-100-24A1201778726-M10*2088G1/270104535M30*22536220

Gas spring
BS08-200-24A12017710726-M10*2088G1/270104535M30*22536220

Gas spring
BS15-150-12A14517710446-M16*25100G1/275155036M30*22541220

Gas spring
BS15-250-12A14517713006-M16*25100G1/275155036M30*22541220

Gas spring
BS15-150-24A14521611146-M16*25100G1/275155036M30*22541270

Gas spring
BS15-250-24A14521613146-M16*25100G1/275155036M30*22541270

Gas spring
BS20-150-12A16617711106-M20*30115G1/285185652M39*23546220

Gas spring
BS20-250-12A16621613596-M20*30115G1/285185652M39*23546270

Gas spring
BS30-150-12A19021611356-M20*30132G3/4100186347M39*23555270

Gas spring
BS30-250-12A19021613856-M20*30132G3/4100186347M39*23555270

Gas spring
BS50-200-12A24026812858-M20*35150G3/4115256356M42*24055330

Gas spring
BS75-200-12A315
162912-M24*45200G11502010060M64*26085380

Gas spring
BS100-200-12A315332164312-M24*45200G11502010060M64*26085380

Gas spring
