Simplified power drive: Use advanced pneumatic hydraulic cylinders as the main power actuator.
Pressures from 2kN to 2000kN can be generated using only 2-8 bar of compressed air, without the need for complex hydraulic power units.
The pressure can be adjusted steplessly within the specified range.
Unique "adaptive" pressing technology: When in contact with the workpiece, the power stroke is automatically triggered at any point in the total stroke.
No need to adjust the stroke when changing tools or workpieces. During the power stroke, the forces automatically adapt to load changes, optimizing the assembly process.

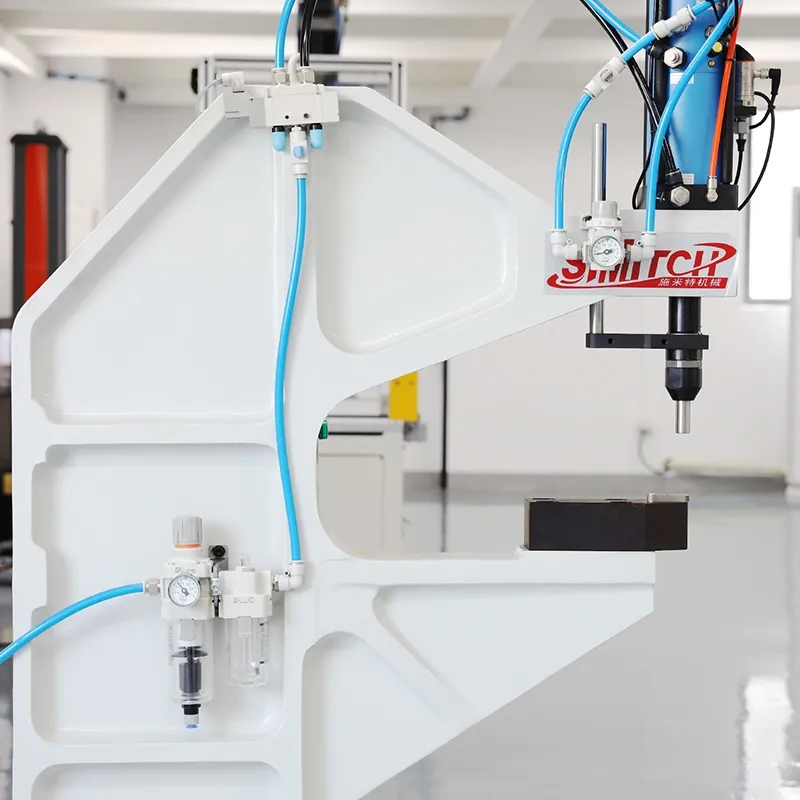

■ Features: Large throat depth
■ Driving method: SIMITCH pneumatic hydraulic BS series cylinder
■ Main parts:
1. Pneumatic hydraulic cylinder
2.CEC machine frame

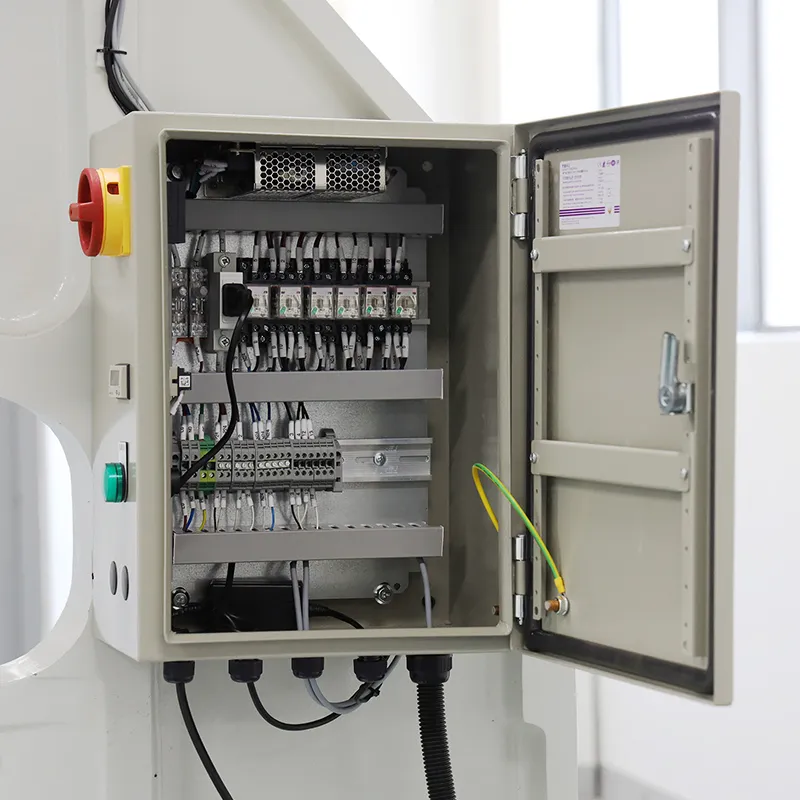

3.STE safety control system
Part number | Maximum capacity | Throat depth | Opening distance | |
KN | T | mm | mm | |
CEC 8 | 78 | 7.8 | 500 | 45 |
Please tell us your materials, thickness and application. Our engineers will provide professional joining advice and technical support according to your specific production requirements.
